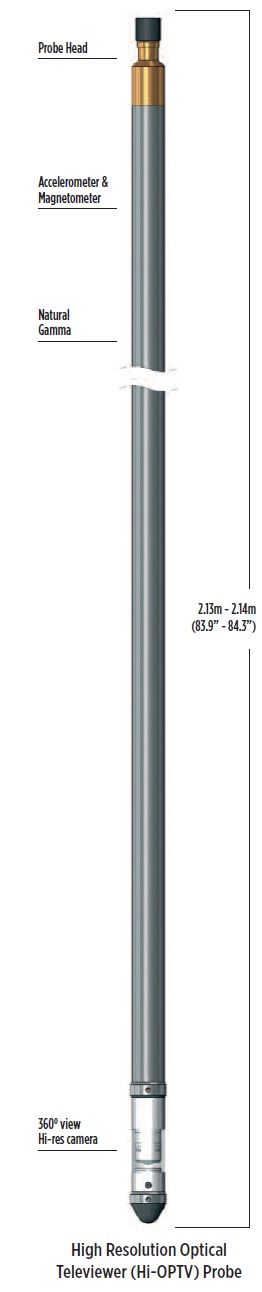

The High Resolution Optical Televiewer (Hi-OPTV) provides a continuous very high resolution oriented image of the borehole walls using a conventional light source.
A unique optical system based on a fisheye lens allows the probe to survey 360 degrees simultaneously. This information is processed in real time to produce a complete ‘unwrapped’ image of the borehole oriented to magnetic north. The probe offers superior resolution to the High Resolution Acoustic Televiewer (HRAT) and produces images in real colour. While, unlike the HRAT, it can operate in air-filled boreholes, it is unsuitable for boreholes containing mud or cloudy fluids.
WellCad™ Image-processing software:
WellCad™ is a Windows-based package for processing, interpreting and displaying acoustic and optical televiewer image logs. Standard log presentations include tadpole and stick plots, stereographic projections of poles to planes and azimuth frequency diagrams. The synthetic core display allows convenient comparison of log and field data for orientation of fractured or incomplete core sections.
